Fast Acting 6.3π TYPE FUSE 600V
|
|
|
| |
| % of Ampere Rating | Time |
| 150% | 60 minutes Min |
| 210% | 2 minutes, Maximum |
| 275% | .4 sec Min.; 10 seconds Max |
| 400% | .15 sec Min.; 3 seconds Maximum |
| 1000% | .02 sec Min. .15 seconds Maximum |
| |
| Voltage Ratings : | 600V AC/DC |
| Ampere Ratings : | 315mA ~ 900mA
1A ~ 10A |
|

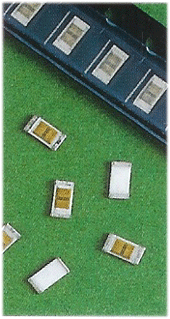

Type C1Q
Surface Mount Very Fast-Acting Chip Fuse
|
|
|
| |
| % of Ampere Rating | Blow Time |
| 100% | 4 hours, Minimum |
| 200% | 5 seconds, Maximum |
| 300% | .0.2 seconds, Maximum |
| |
| |
| Ampere Ratings | Volt @ I.R.ablility |
| 250mA ~ 5A | 125V AC@ 100A and 63V DC@ 50A |
| |
| Ampere Ratings : | 250mA, 375mA, 500mA, 750mA, 1A, 1.25A, 1.5A, 2A, 2.5A, 3A, 3.5A, 4A, 5A |
|

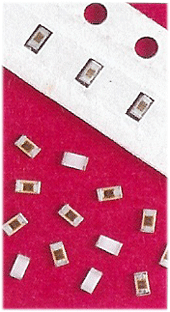

Type C2Q
Surface Mount Very Fast-Acting Chip Fuse
|
|
|
| |
| % of Ampere Rating | Blow Time |
| 100% | 4 hours, Minimum |
| 200% | 5 seconds, Maximum |
| 300% | .0.2 seconds, Maximum |
| |
| |
| Ampere Ratings | Volt @ I.R.ablility |
| 250mA ~ 4A | 32V AC@ 35A and 63V DC@ 50A |
| |
| Ampere Ratings : | 250mA, 300mA, 375mA, 500mA, 750mA, 1A, 1.25A, 1.5A, 2A, 2.5A, 3A, 3.5A, 4A |
|
Type SST
Square Ceramic Surface Mount Slow Blow Fuse
|
|
|
| |
| % of Ampere Rating | Blow Time |
| 100% | 4 hours, Minimum |
| 200% | 1 seconds, Min.; 60 second, Max |
| 300% | .0.2 seconds, Min.; 3 second, Max |
| 800% | .0.02 seconds, in.; 0.1 second, Max |
| |
| |
| Ampere Ratings | Volt @ I.R.ablility |
| 375mA ~ 7A | 125V @ 50A AC/DC |
| |
| Ampere Ratings : | 375mA, 500mA, 750mA, 1A, 1.5A, 2A, 2.5A, 3A, 3.5A, 4A, 5A, 7A |
|
Type SSQ
Square Ceramic Surface Mount Quick Acting Fuse
|
|
|
| |
| % of Ampere Rating | Blow Time |
| 100% | 4 hours, Minimum |
| 200% | 5 seconds, Maximum |
| |
| |
| Ampere Ratings | Volt @ I.R.ablility |
| 250mA ~ 7A | 60 minutes Min |
| 1.5A ~ 12A | 125V @ 50A ac or 60V @ 100A dc |
| 15A | 60V @ 100A dc |
| |
| Ampere Ratings : | 250mA, 375mA, 500mA, 750mA, 1A, 1.25A, 1.5A, 2A, 2.5A, 3A, 3.5A, 4A, 5A, 6.3A, 7A, 10A, 12A, 15A |
|
|
|
