| % of Ampere Rating | Time |
| 150% | 60 minutes Min |
| 210% | 2 minutes, Maximum |
| 275% | .4 sec Min.; 10 seconds Max |
| 400% | .15 sec Min.; 3 seconds Maximum |
| 1000% | .02 sec Min. .15 seconds Maximum |
| |
| Voltage Ratings : | 250V AC |
| Ampere Ratings : | 500mA, 630mA, 800mA, 1A, 1.25A, 1.6A, 2A, 2.5A, 3.15A, 4A |

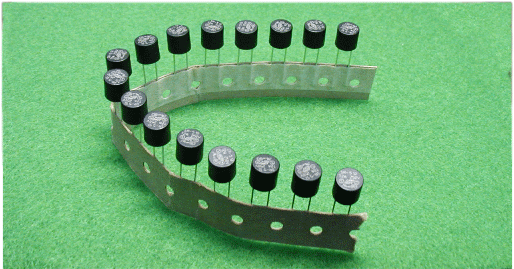

| SR-5 Time Delay fuse Series |
|
